  2. Cámara Bullet AI IR 2 Megapixel (1080p) / Lente 2.8-12 mm / IR 50 m (164 ft) / IP66-IP67-IK10 / Análisis IA / Wisenet 9 / Dual NPU / -40°C a +60°C / PoE | XNO-A6084R
Tarifa Normal

Cámara Bullet AI IR 2 Megapixel (1080p) / Lente 2.8-12 mm / IR 50 m (164 ft) / IP66-IP67-IK10 / Análisis IA / Wisenet 9 / Dual NPU / -40°C a +60°C / PoE | XNO-A6084R

https://ssmadretierra.com/web/image/product.template/22201/image_1920?unique=37eede9

Marca: Hanwha Techwin Wisenet
Modelo: XNO-A6084R
• Resolución 2MP con visión nocturna IR de 50m
• Lente varifocal 2.8-12mm con zoom óptico 4.3x
• Procesador Wisenet 9 con doble NPU para IA
• Analítica avanzada IA: personas, vehículos y placas
• Operación extrema -40°C a +60°C con IP66/IP67
• Wide Dynamic Range 150dB y WiseStream IA

$ 20,904.00 más IVA 20904.0 MXN $ 20,904.00

Stock disponible: 1.0

$ 20,904.00

    Esta combinación no existe.

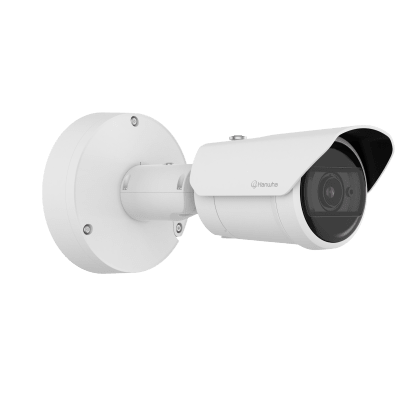

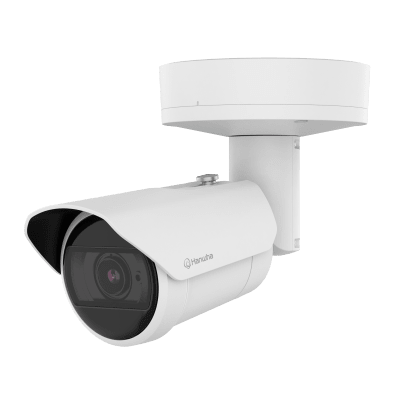

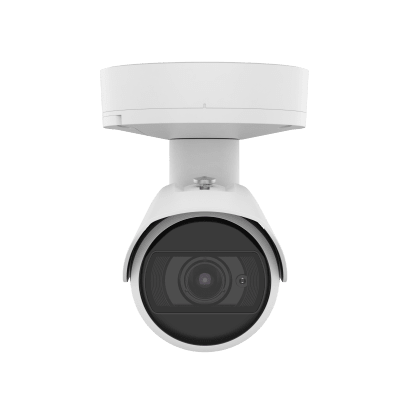

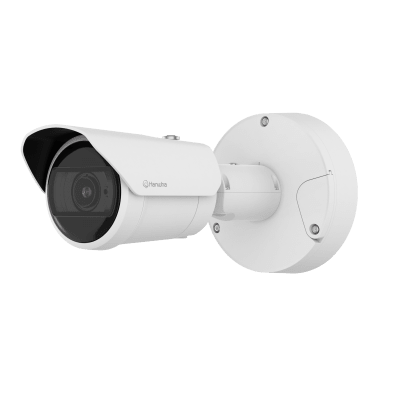

    Hanwha Vision XNO-A6084R

    2MP AI IR Bullet Camera

    Professional bullet camera featuring dual NPU architecture for AI-based image enhancement and advanced analytics. Equipped with a 1/2.8" CMOS sensor delivering 1920x1080 resolution at up to 60fps (H.265/H.264), motorized 2.8-12mm lens with 4.3x optical zoom, and 150dB WDR. The Wisenet 9 SoC integrates 4GB RAM and 8GB eMMC flash, supporting edge storage up to 1TB microSD card. Comprehensive ONVIF conformance (Profile G, S, T, M), MQTT, and Hanwha Open Platform API enables deep integration into VMS and third-party systems.

    Designed for extreme environments with IP66/IP67/IK10 and NEMA 4X rating, operational from -40°C to +60°C. AI analytics include object detection, virtual line/area, people/vehicle counting, heatmap, queue management, face mask detection, slip & fall, and business intelligence. Security features include secure boot, encrypted firmware, 802.1X authentication, and FIPS 140-3 level 3 secure element.

    Key Features

    Image Resolution: 2MP (1920x1080)
    Focal Length: 2.8-12mm (4.3x optical)
    IR Length: 50m (850nm)
    Ingress Protection: IP66, IP67, IK10, NEMA 4X
    Dual NPU: AI-based image enhancement & analytics
    Wide Dynamic Range: 150dB
    Min. Illumination: Color: 0.02 lux, B/W: 0.002 lux
    SoC: Wisenet 9 with 4GB RAM / 8GB flash

    Video & Imaging

    Imaging Device: 1/2.8" CMOS
    Max. Resolution: 1920x1080 (2MP)
    Max. Framerate: 60fps @ H.265/H.264, 30fps @ MJPEG
    Min. Illumination: Color: 0.02 lux (1/30sec, 30IRE); B/W: 0.002 lux
    WDR: 150dB
    Digital Noise Reduction: WiseNR II (AI engine), SSNR V
    Digital Image Stabilization: Support
    Defog: Support
    Video Rotation: Flip, Mirror, Hallway view (90°/270°)
    LDC: Support (Fill/Stretch mode)
    Electronic Shutter: Min/Max/Anti-flicker, AI-based prefer shutter, 2 ~ 1/40,000 sec
    Day & Night: Auto (ICR)

    Lens & Optics

    Focal Length: 2.8~12mm
    Optical Zoom: 4.3x
    Aperture (Wide/Tele): F1.4 / F3.6
    Angular FOV: Horizontal: 120°~27°, Vertical: 63°~15°, Diagonal: 143°~32°
    Min. Object Distance: 0.5m (1.64ft)
    Focus Control: Simple focus, Manual
    Lens Type: P-iris (IR corrected)

    AI Analytics

    Analytics Events: Object detection, Virtual line (crossing/direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (loitering/intrusion/enter/exit/appear/disappear), Defocus detection, Tampering, Audio detection, Shock detection
    Business Intelligence: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
    Classified Object Types: Person, Face, Vehicle, License plate
    Attributes: Person: Upper/lower clothes color, gender, bag; Vehicle: type (car/bus/truck/motorcycle/bicycle), color; Face: age, gender, face mask, glasses
    Thumbnail: BestShot

    Network & Protocols

    Ethernet: Metal shielded RJ-45 (10/100BASE-T)
    Video Compression: H.265/H.264 (Main/Baseline/High), MJPEG
    Audio Compression: G.711, G.726, AAC-LC, OPUS
    Smart Codec: WiseStream (AI engine)
    Streaming: Unicast (up to 20 users), Multicast, up to 5 profiles, 3 virtual channels
    Protocols: IPv4/IPv6, TCP/UDP, RTSP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP/SFTP, SNMPv1/v2c/v3, MQTT, SMTP, Syslog, 802.1X, and more.
    API: ONVIF (Profile G, S, T, M), SUNAPI (HTTP API), Hanwha Open Platform
    Direct Cloud Connection: Support

    Security Features

    OS/Firmware Protect: Encrypted firmware, Secure boot, Signed firmware
    User Authentication: Digest authentication, Brute-force attack prevention
    Network Authentication: IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
    Secure Communication: HTTPS, WSS, SRTP
    Access Control: IP-based, MAC-based, Auto logout
    Data Protect: Encryption credentials, Encrypt compress for live recording export
    Secure Element: FIPS 140-3 level 3, CC EAL6+, Consumer IoT Security Standard (ETSI EN 303 645)

    Mechanical & Electrical

    Dimensions: ø93.4 x 276.6 mm (3.68 x 10.89")
    Weight: 1,660 g (3.66 lb)
    Material: Aluminum, PC, Hard-coated window
    Color / RAL: White / RAL9003
    Pan/Tilt/Rotate: Pan: 0°~350°, Tilt: 0°~90°, Rotate: 0°~350°
    Input Voltage: PoE (IEEE802.3af, Class3)
    Power Consumption: Max 10.2W, typical 5.0W
    WisePower: Power monitoring, Eco mode

    Environmental & Edge Storage

    Operating Temp.: -40°C ~ +60°C (-40°F ~ +140°F), max +74°C (NEMA-TS 2)
    Storage Temp.: -50°C ~ +60°C (-58°F ~ +140°F)
    Humidity: 0~100% RH (condensing) operating; 0~90% RH (non-condensing) storage
    Edge Storage: Micro SD/SDHC/SDXC slot, max 1TB
    SoC / Memory: Wisenet 9 with Dual NPU, 4GB RAM, 8GB eMMC
    Alarm I/O: 2 configurable ports, supports external I/O box

    Certifications & Standards

    EMC: FCC Class A, CE/UKCA EN55032 Class A, EN50130-4, VCCI Class A, RCM, KS C 9832
    Safety: UL 62368-1, CSA C22.2, IEC 62471
    Environmental: IP66, IP67, IK10, NEMA TS 2-2013, NEMA 250 type 4X, IEC 60068-2 (series)
    Supply Chain Security: SBOM, Secure element certified

    Audio & Alarm

    Audio In/Out: Selectable (mic in/line in), Line out
    Alarm Triggers: Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
    Alarm Events: File upload (email/FTP/SFTP), video clip upload (FTP/SFTP), email notification, SD/NAS recording, Alarm output, PTZ preset, HTTP/HTTPS/TCP message, Audio clip playback, MQTT publication
    Video Out: USB Type C (preview/installation only, requires WiFi dongle)

    IR Illumination

    Light Type: IR LED
    IR Viewable Length: 50 meters
    IR Wavelength: 850nm

    General & Compatibility

    EPA (Effective Projected Area): 0.02 m²
    Conduit / Gang Box: Optional adapter for conduit; supports single/double/4" octagon/square boxes
    Device ID / Certificate: Device certificate (Hanwha Vision Root CA)
