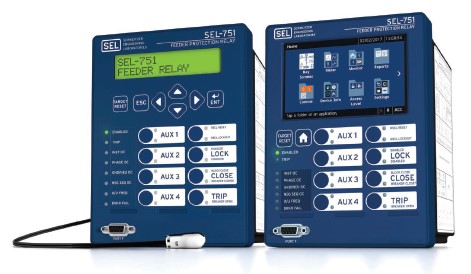

SSMELE 751#XX6K   (Sin Arc Sense)

Relé de protección de alimentador (Sin Arc Sense)
Marca: SEL
Núm Parte: 751#XX6K
Modelo: 751#XX6K (751101A1ACA7085B6F0)
Advanced Features -- Reclosing
User Interface -- English

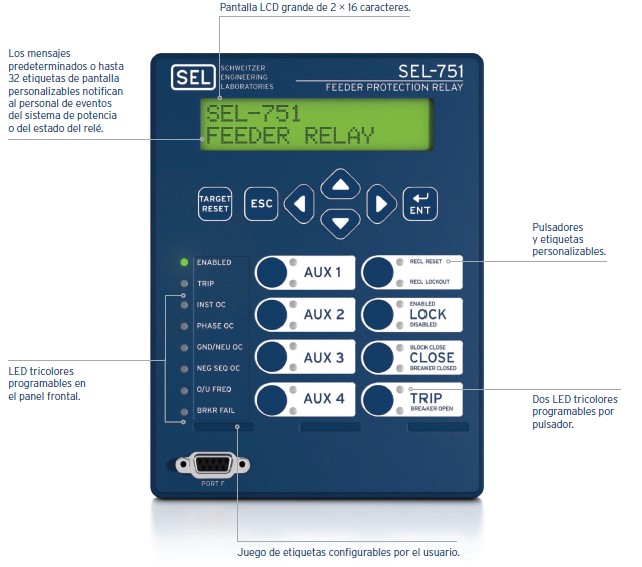

Front Panel -- 5-inch Color Touchscreen With 4 Pushbuttons
Slot A Power Supply Voltage -- 110-250 Vdc (110-240 Vac); 50/60 Hz
Slot A Digital Input Voltage -- 125 Vdc/Vac
Slot B Ethernet (Port 1) -- Dual 10/100BASE-T Ethernet
Slot B Multimode Fiber ST (Port 2) -- Yes
Slot B Rear Serial Port (Port 3) -- EIA-232
IEC 61850 Protocol -- Yes
DNP3 Protocol -- Yes
IEC 60870-5-103 Protocol -- Yes
EtherNet/IP Protocol -- Yes
Slot C -- 4 DI / 4 DO Electromechanical (Form A)
Slot C Digital Input Voltage -- 125 Vdc/Vac
Slot D -- 4 DI / 4 DO Fast High Current Hybrid (Form A)
Slot D Digital Input Voltage -- 125 Vdc/Vac
Slot E -- Vsync (300 Vac) / Vbat (300 Vdc) / 4 Arc-Flash Detection Inputs
Slot E Digital Input Voltage -- NA
Slot Z Voltage Inputs -- 3-Phase AC Voltage (300 Vac)
Slot Z Current Inputs -- 5 Amp Phase, 5 Amp Neutral
Conformal Coat -- No
DMA Bundle -- No

Tiempo de Entrega: 6 semanas
