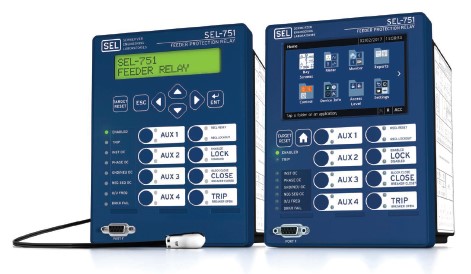

SSMELE 751#KCVD

Relé de protección de alimentador
Marca: SEL
Num Parte: 751#KCVD
Modelo: 751#KCVD (751001ACACA77A51310)
Advanced Features -- None
User Interface -- English

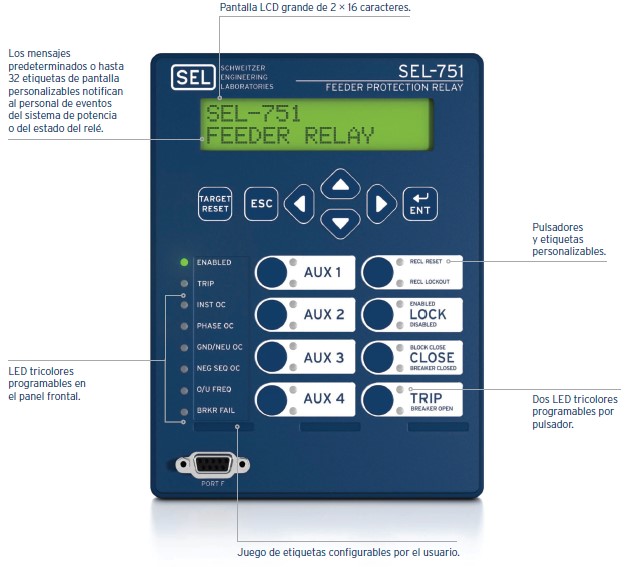

Front Panel -- 2x16 LCD With 4 Pushbuttons
Slot A Power Supply Voltage -- 110-250 Vdc (110-240 Vac); 50/60 Hz
Slot A Digital Input Voltage -- 125 Vdc/Vac
Slot B Ethernet (Port 1) -- Single 10/100BASE-T Ethernet
Slot B Multimode Fiber ST (Port 2) -- Yes
Slot B Rear Serial Port (Port 3) -- EIA-485
IEC 61850 Protocol -- Yes
DNP3 Protocol -- No
IEC 60870-5-103 Protocol -- No
EtherNet/IP Protocol -- No
Slot C -- 4 DI / 4 DO Fast High Current Hybrid (Form A)
Slot C Digital Input Voltage -- 125 Vdc/Vac
Slot D -- 4 DI / 4 DO Fast High Current Hybrid (Form A)
Slot D Digital Input Voltage -- 125 Vdc/Vac
Slot E -- 8 Arc-Flash Detection Inputs
Slot E Digital Input Voltage -- NA
Slot Z Voltage Inputs -- None
Slot Z Current Inputs -- 5 Amp Phase, 5 Amp Neutral
Conformal Coat -- No
DMA Bundle -- No
Tiempo de entrega: 5-6 semanas
