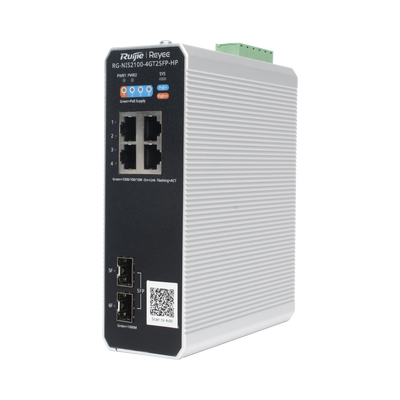

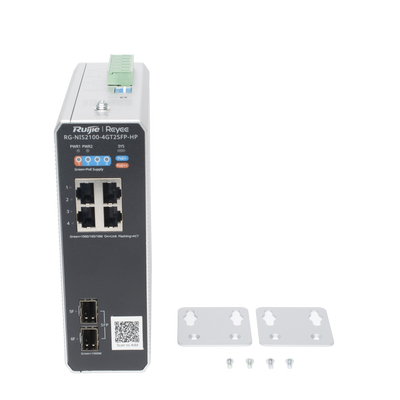

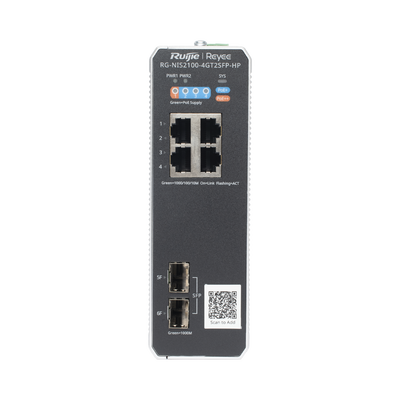

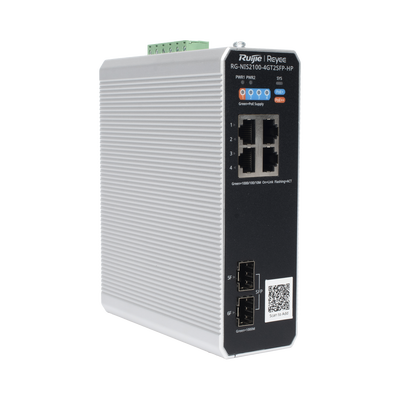

Switch Industrial PoE+ hasta 180 watts , Ideal para temperaturas Extremas y protección contra descargas, 1 puerto PoE++ 60W y 3 puertos PoE+ 30W, 2 SFP Uplink | RG-NIS2100-4GT2SFP-HP
Marca: RUIJIE
Modelo: RG-NIS2100-4GT2SFP-HP
• Industrial para temperaturas extremas de -40°C a 75°C
• Puerto PoE++ y tres puertos PoE+ IEEE 802.3at/af
• Protección contra sobretensiones de 6 kV modo común
• 2 puertos SFP de fibra óptica 1 Gbps
• Capacidad de conmutación de 12 Gbps y velocidad de reenvío de 8.9 Mpps
• Diseño compacto de 50 x 155 x 130 mm y 0.77 kg
Key Specification
- Number of 1 Gbps SFP Ports: 2
- Number of 10/100/1000BASE-T Ports: 4
- Layer: 2
- Switching Capacity: 12 Gbps
- Forwarding Rate: 8.9 Mpps
- MAC Address Table Size: 8000
- Max. Number of VLANs: 16
- Dimensions (W x D x H): 50 mm x 155 mm x 130 mm (1.97 in. x 6.10 in. x 5.12 in.)
- Net Weight: 0.77 kg (1.70 lbs)
- Mean Time Between Failure (MTBF): > 200,000 hours
- Warranty: 5 years
- Port Surge Protection: Common mode: 6 kV
- Certification: CE
Espesificaciones de Energia
Switch DC input:
● Rated voltage range: 46 V DC to 57 V DC
● Rated current range: 4.2 A
● Consumo MIN. 12 W (sin carga PoE)
● Consumo MAX. 192 W (con carga PoE)
Fuente RG-NIS-PA240-54 (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Rated input current: 3.5 A Output：
● Rated output voltage: 54 V DC
● Maximum output current: 4.4 A
Fuente RG-NIS-PA120-54 (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
● Maximum input voltage: 85 V AC to 264 V AC, 47 Hz to 63 Hz
● Rated input current: 1.5 A Output：
● Rated output voltage: 54 V DC
● Maximum output current: 2.5 A
