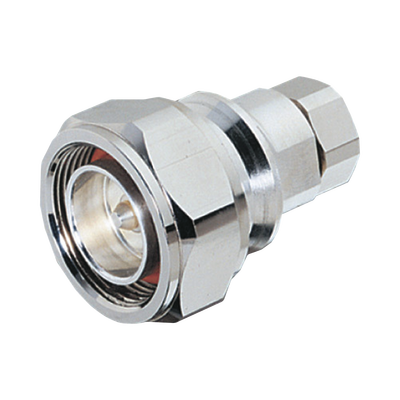

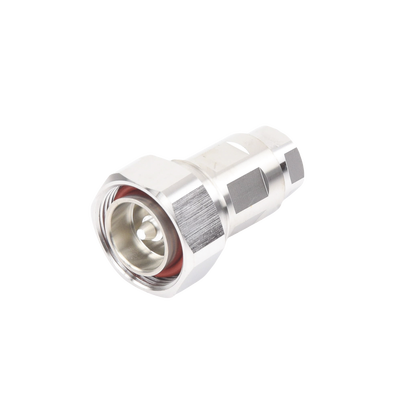

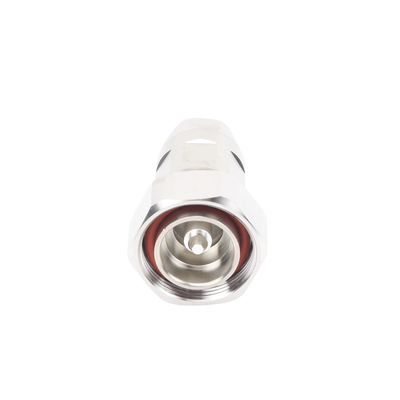

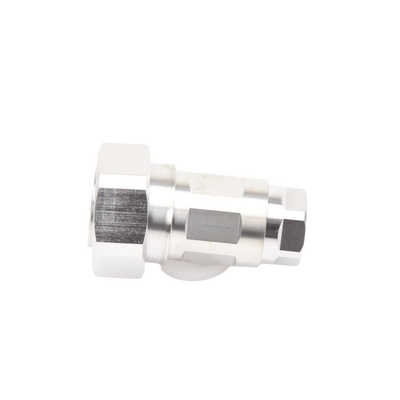

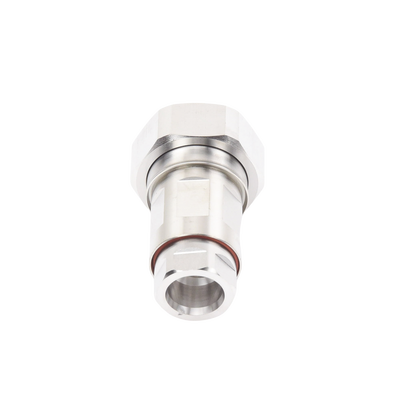

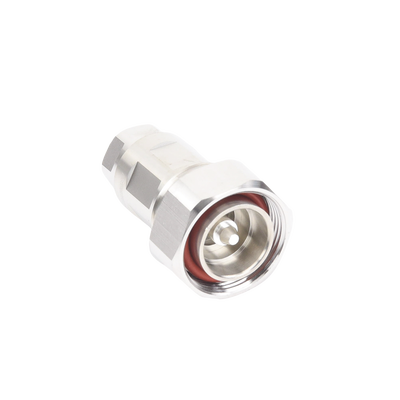

Conector DIN 7/16 Macho Para Cable FSJ4-50B | F4PDMV2-C
Marca: ANDREW / COMMSCOPE
Modelo: F4PDMV2-C
• Impedancia de conector 50 ohm para 0-7500 MHz
• Potencia media 1.0 kW @ 900 MHz
• IMD de 3er orden -120 dBm @ 910 MHz
• Tensión RF máxima 884.00 VRMS
• Pérdida de inserción 0.05 dB típica
• Resistencia de contacto exterior 1.50 mΩ máxima
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 7500 MHz
- Average Power at Frequency: 1.0 kW @ 900 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -120 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 884.00 V
- dc Test Voltage: 2500 V
- Outer Contact Resistance, maximum: 1.50 mOhm
- Inner Contact Resistance, maximum: 0.80 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Peak Power, maximum: 15.60 kW
- Insertion Loss, typical: 0.05 dB
- Shielding Effectiveness: -110 dB
